If you’re looking into a 6 stage telescopic hydraulic cylinder for dump truck, chances are your setup is already pushing the limits of standard designs. This isn’t something most light or mid-duty trucks need. Six stages usually come into the picture when dump bodies are long, loads are stubborn, and a normal lift just doesn’t clear the material.
This article looks at six-stage telescopic cylinders from a real-world angle—why they exist, when they’re worth it, and what you should honestly pay attention to before choosing one.
What Makes a 6 Stage Telescopic Hydraulic Cylinder Different?

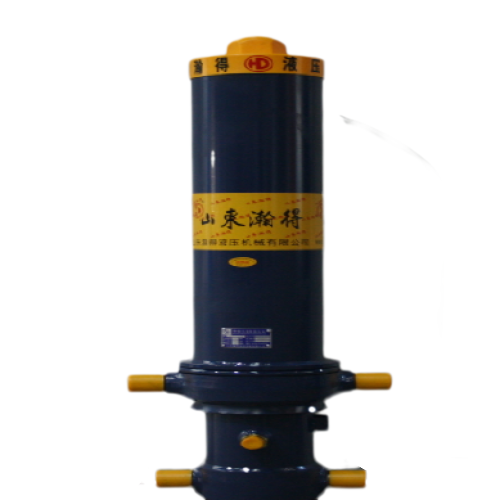

A 6 stage telescopic hydraulic cylinder uses six nested stages that extend one after another. The main idea is simple: get an extremely long lifting stroke while keeping the retracted length as short as possible.
Compared to 4 or 5 stage cylinders, a six-stage design is usually about height and geometry, not just load capacity. It allows dump trucks with very long bodies to achieve a steep dump angle without redesigning the entire chassis.
When Does a Dump Truck Actually Need Six Stages?
From a practical standpoint, six-stage telescopic cylinders are not common on standard dump trucks. They show up in more demanding situations, such as:
- Extra-long dump bodies
- High-capacity hauling with sticky materials
- Restricted retracted space under the body
- Applications requiring a very high tipping angle
If material regularly hangs up in the bed even at full lift, that’s usually the moment operators start considering a 6 stage telescopic hydraulic cylinder.
How a 6 Stage Telescopic Cylinder Performs During Dumping
In real operation, the lifting sequence matters. The largest stage extends first, providing the strongest force when the truck is fully loaded. As the dump body rises and the load begins to shift, the smaller stages extend, adding height rather than raw power.
From the driver’s perspective, a well-matched six-stage cylinder feels smoother than expected. There’s less sudden movement at the top of the stroke, which helps protect the truck frame and hinge points.
Front Mounting Is Almost Always the Choice
Most 6 stage telescopic hydraulic cylinders for dump trucks are front-mounted. Underbody mounting usually doesn’t provide the geometry needed for such a long stroke.
Front mounting allows better leverage, higher dump angles, and easier access for inspection. On trucks running heavy cycles every day, this also means quicker maintenance checks.
Key Specifications You Shouldn’t Ignore
With six stages involved, small design mistakes become big problems. Based on field experience, these specs deserve extra attention:
- Total stroke length versus retracted length
- Stage diameters and wall thickness
- Rated working pressure
- Mounting pin size and alignment
- Seal system quality
A six-stage cylinder that isn’t matched properly can feel slow, unstable, or wear out seals much faster than expected.
Common Problems Seen with 6 Stage Telescopic Cylinders
Because of their complexity, six-stage cylinders demand good design and clean hydraulic systems. The most common issues usually include:
- Seal leakage between upper stages
- Uneven extension due to oil contamination
- Stage scoring from side loading
- Slow lift speed from inadequate hydraulic flow
Most failures aren’t caused by the cylinder alone, but by poor system matching or neglected maintenance.
Maintenance Habits That Matter More Than You Think
A 6 stage telescopic hydraulic cylinder doesn’t need special treatment, but it does need consistency:
- Keep hydraulic oil clean and filters fresh
- Inspect stages for early signs of leakage
- Avoid dumping on uneven ground when fully loaded
- Check mounting pins and bushings regularly
Catching small problems early can prevent expensive repairs or full cylinder replacement.
Why Most 6 Stage Cylinders Are Custom-Built
Off-the-shelf options are limited for six-stage designs. Dump truck dimensions, hinge positions, and load ratings vary too much. That’s why most 6 stage telescopic hydraulic cylinders for dump trucks are custom manufactured.
A custom cylinder is designed around your truck’s actual geometry, not an average setup. While the upfront cost is higher, the performance and service life usually justify it.
Final Thoughts: Is a 6 Stage Telescopic Hydraulic Cylinder Worth It?
A 6 stage telescopic hydraulic cylinder for dump truck is a specialized solution. It’s not about overkill—it’s about solving a specific lifting problem that smaller cylinders can’t handle.
If your operation depends on reliable, complete dumping with long bodies or difficult materials, a properly designed six-stage cylinder can make daily work smoother, safer, and more efficient.
